CV-420MN
Content Columns

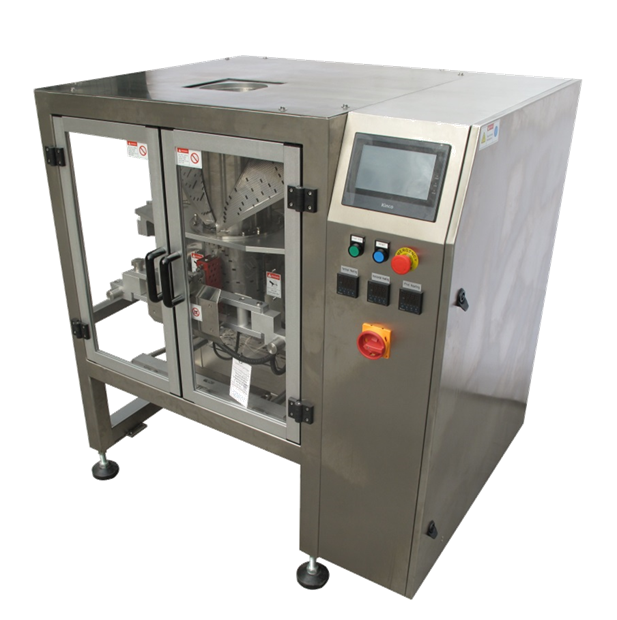

The CAM CV-420MN automatically forms bags from packaging film, fills them with product, seals them, and produces finished packages in a continuous operation.
Built for ease of use and reliable performance, it combines advanced controls, accurate film handling, and recipe management to help manufacturers improve productivity while maintaining consistent package quality.
This machine is well suited for food manufacturers, co-packers, and consumer goods producers looking for a flexible packaging solution that supports multiple products, quick changeovers, and repeatable production settings.
Accordion + Carousel
The CV-420MN is designed to package a wide variety of products when paired with the appropriate dosing or filling system. Typical applications include coffee, tea, pet food, liquids, powders, pharmaceuticals, confectionery, bakery products, and kitting applications.
The machine produces flexible bags from roll stock film and supports bag sizes ranging from 80-180 mm in length and 80-200 mm in width. It works with heat-sealable laminates, polypropylene films, and metalized films, making it suitable for many retail and industrial packaging applications.
The CV-420MN combines an intuitive PLC and touchscreen control system with advanced automation features to simplify operation and improve packaging consistency. Operators can easily adjust machine settings, monitor production output, and view self-diagnostic alerts directly from the interface. The servo-driven twin-belt film pulling system and print registration capabilities ensure accurate film tracking and package presentation, while recipe recall enables quick, repeatable product changeovers. An external film roll holder with an air-bladder design allows for faster film changes, and the PID temperature controller automatically maintains sealing temperatures within ±1°C for reliable seal integrity. The machine is also UL and CSA electrically approved, providing added confidence in safety and compliance.
Technical Information
| Specification | Details |
|---|---|
| Model | CV-420MN |
| Machine Type | Vertical Form Fill Seal (VFFS) |
| Bag Length | 80-180 mm (3.14”-7”) |
| Bag Width | 80-200 mm (3.14”-7.75”) |
| Maximum Film Width | 420 mm (16.5”) |
| Compatible Materials | Heat-sealable laminates, polypropylene, and metalized films |
| Maximum Speed | 20-45 packages per minute |
| Air Requirement | 90 PSI @ 12 CFM |
| Power Requirements | 220V / 60Hz / 20A / Single Phase |
| Machine Dimensions | 1084 mm (W) × 1495 mm (D) × 1232 mm (H) |
| Imperial Dimensions | 43” (W) × 59” (D) × 48.5” (H) |
| Loading Height | 1245 mm (49”) |
| Certifications | UL and CSA Electrically Approved |
