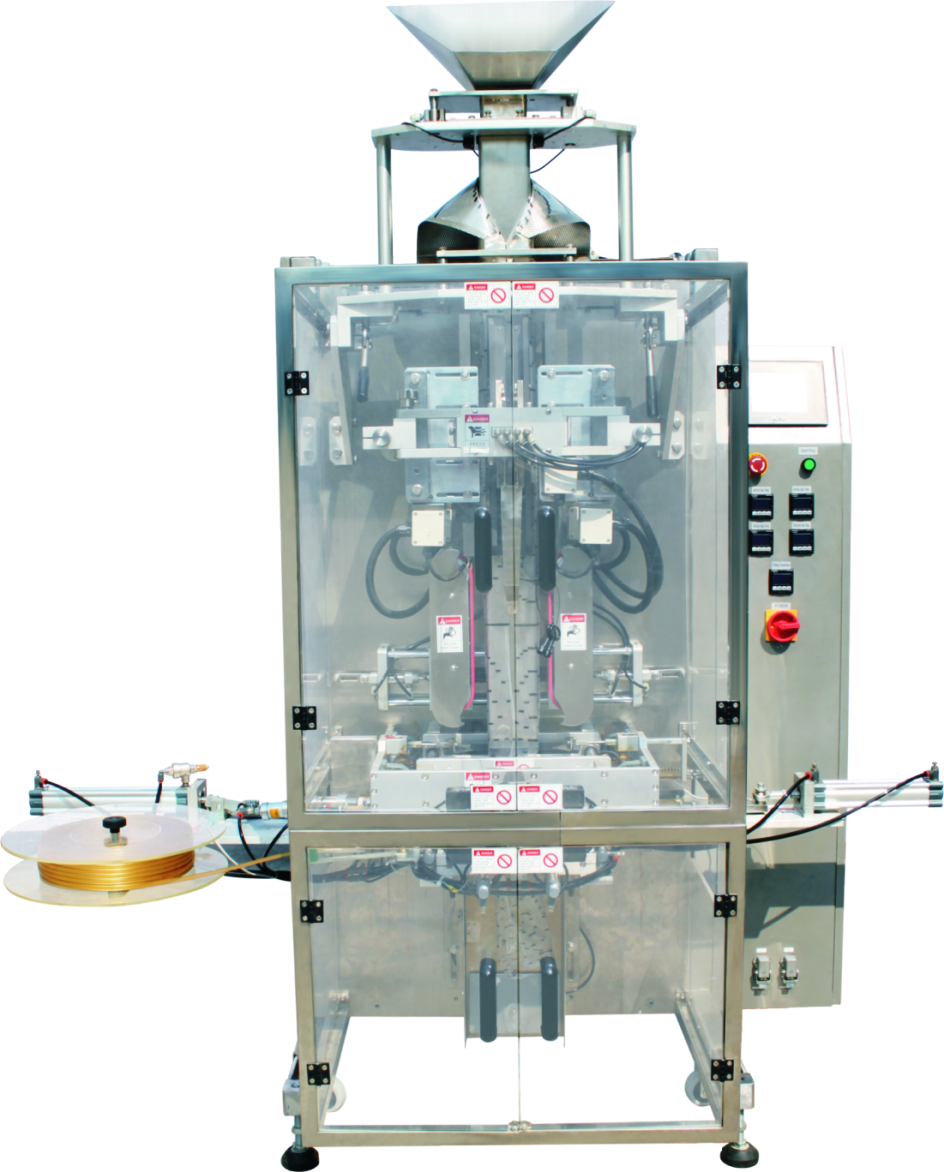

CV-520 (CM)

The CAM CV-520 (CM) automates the entire packaging process, including bag forming, product measuring, filling, printing, sealing, and cutting.

Its continuous box motion design allows for higher production rates than traditional intermittent-motion systems while maintaining accurate package formation and seal quality.

This machine is ideal for manufacturers looking to increase throughput, improve packaging consistency, and handle multiple product types on a single packaging platform. It is especially well suited for medium- to high-volume food, pharmaceutical, and consumer goods packaging operations.

Products it can handle

The CV-520 (CM) is designed to package a wide range of products and can be integrated with various weighing, counting, and filling systems. Suitable applications include coffee, tea, pet food, liquids, powders, pharmaceuticals, confectionery, bakery products, and kitting applications.

Packaging types / formats

The machine produces flexible bags from roll stock film and supports bag sizes ranging from 50-350 mm in length and 50-250 mm in width. It is compatible with heat-sealable laminates, polypropylene films, and metalized films, making it suitable for a variety of retail and industrial packaging formats.

Key Features

The CV-520 (CM) combines continuous box motion technology with a PLC-controlled touchscreen interface to automate bag making, measuring, filling, printing, sealing, and cutting in a single operation. A servo-driven double belt film-pulling system delivers smooth, accurate film handling and consistent package formation while reducing wear on machine components. Separate pneumatic and electrical control cabinets improve operational stability and minimize noise, while the external film release mechanism simplifies film loading and changeovers. Operators can easily adjust bag tracking through the touchscreen, and the enclosed machine design helps prevent powders and fine particles from entering critical machine components, supporting long-term reliability and clean operation.

What Matters Most

High-speed continuous motion performance
The continuous box motion design supports production speeds of up to 90 bags per minute, helping manufacturers increase output while maintaining package quality.
Flexible packaging capabilities
With a bag size range of up to 350 mm long and 250 mm wide, the CV-520 (CM) can accommodate a variety of package formats and product applications.
Reliable film handling
The servo motor-driven double belt film-pulling system ensures accurate film control, minimizes pulling resistance, and consistently produces well-formed packages with an attractive appearance.
Simple operation and machine stability
A PLC-based control system with color touchscreen provides easy parameter adjustments and operation, while separate pneumatic and electrical control systems improve stability and reduce operating noise.

Technical Information

Specification	Details
Model	CV-520 (CM)
Machine Type	Continuous Box Motion VFFS
Bag Length	50-350 mm (2”-14”)
Bag Width	50-250 mm (2”-10”)
Maximum Film Width	530 mm
Compatible Materials	Heat-sealable laminates, polypropylene, and metalized films
Mechanical Speed	5-90 bags per minute
Application Speed	Determined by product characteristics and testing
Fill Range	Up to 3000 ml
Air Requirement	90 PSI @ 12 CFM
Power Requirements	220V / 50Hz / 2.2 kW
Machine Dimensions	1080 mm (L) × 1300 mm (W) × 1400 mm (H)
Imperial Dimensions	42.5” (L) × 51.2” (W) × 55.1” (H)
Weight	600 kg
